人気 の オンライン カジノ, Our Existing Ceiling Fall Prevention System

人気 の オンライン カジノ®, our existing ceiling fall prevention system, has evolved to achieve a greatly expanded range of applications.

The system achieved application to ceilings with special shapes, and we have acquired Construction Technology Performance Certification.
To expand the range of applications of its ceiling fall prevention system 人気 の オンライン カジノ® (called FSC below), オンラインカジノ has developed technology enabling the system to be applied to specially shaped ceilings, including inclined ceilings with an angle of up to 30 degrees as well as curved ceilings. This is the first fall prevention technology in the industry for specially shaped 人気 の オンライン カジノ.

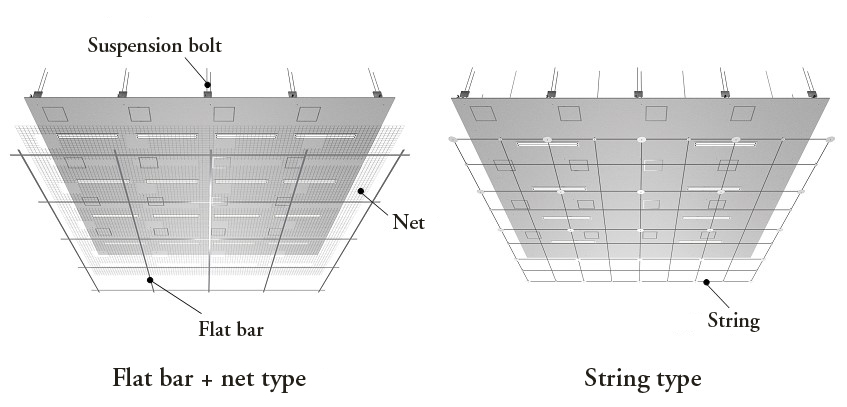

FSC is a proprietary system developed by オンラインカジノ that is used to prevent 人気 の オンライン カジノ from falling without having to disassemble them. The system works by installing flat bars (flat aluminum bars) and nets or net strings (thin ropes) on the undersides of existing 人気 の オンライン カジノ. The conventional FSC system could only be used for flat horizontal 人気 の オンライン カジノ, so finding a way to handle inclined 人気 の オンライン カジノ, curved 人気 の オンライン カジノ, and other specially shaped 人気 の オンライン カジノ was an issue.

Our recently developed FSC system was achieved by adding new functions to conventional technology, and we not only applied the system to specially shaped 人気 の オンライン カジノ but also obtained Construction Technology Performance Certification from the General Building Research Corporation of Japan (GBRC Performance Certification No. 16-27). In addition, as a result of obtaining Performance Certification, the FSC shape freedom was increased, which improves workability.

The main features of the evolved FSC system are described below.

1. In addition to flat horizontal 人気 の オンライン カジノ, the system can be applied to inclined and curved 人気 の オンライン カジノ.

   With the conventional FSC system, flat bars, strings, and other net components could only be installed horizontally. However—by adding an angle adjustment function that handles inclined angles to the joints connecting net components and attachment bolts—we enabled the application of our FSC system to 人気 の オンライン カジノ that have an inclination angle of up to 30 degrees as well.

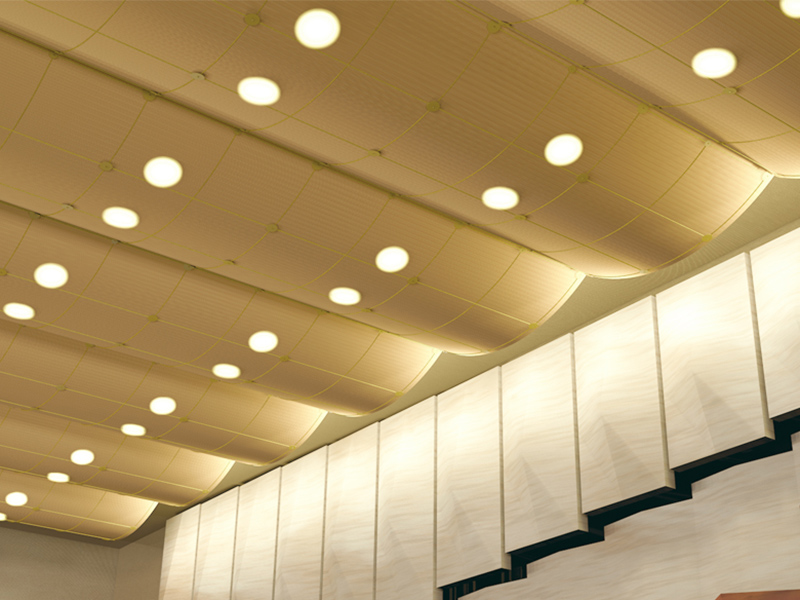

   In addition, because net components are flexible, the system can also be applied to curved 人気 の オンライン カジノ. The system prevents the 人気 の オンライン カジノ of buildings with a lot of pillar-free space—including theaters, halls, and other buildings that often have specially shaped 人気 の オンライン カジノ—from falling.





2. By expanding the suspension bolt installation interval, we improved the freedom of layouts on a ceiling surface.

   Our FSC is constructed by fixing attachment or pass-through bolts to existing or newly installed suspension bolts. Normally, existing suspension bolts are used to install net components on a ceiling with a layout that has a certain interval, but, with the conventional FSC system, the suspension bolt installation interval was limited to 1,800 mm or less in all directions. Therefore, in cases where the existing bolt installation interval exceeded 1,800 mm, it was necessary to punch holes in the ceiling and install new suspension bolts.
   Regarding our recently developed FSC system—during the proving test when we obtained Construction Technology Performance Certification—we verified that, if the load area per suspension bolt is equivalent to the conventional range, the suspension bolt installation interval (the horizontal projected interval) for both flat and specially shaped 人気 の オンライン カジノ can be expanded up to a maximum of 3,000 mm. Because the suspension bolt installation interval has been expanded, ceiling surface layouts can be handled with greater freedom. In addition, because the range for utilizing existing suspension bolts has been expanded, it is not necessary to install as many new suspension bolts, which improves workability.
